Project Update – 27/03/2014: Revised component

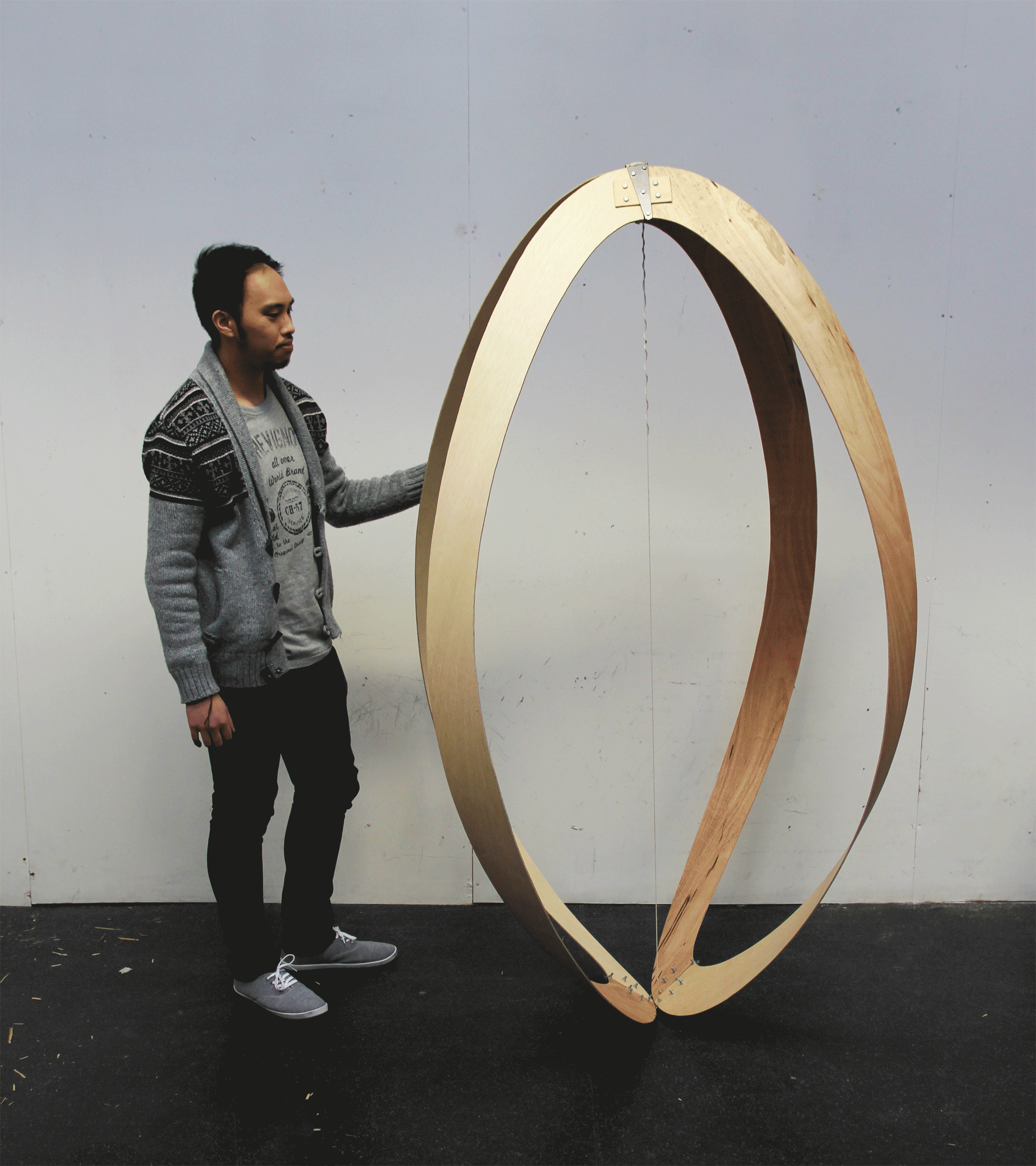

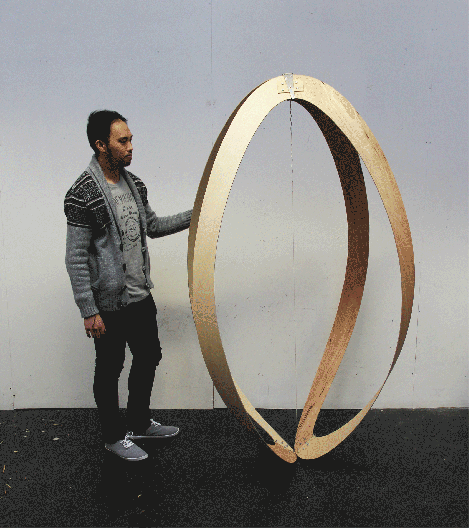

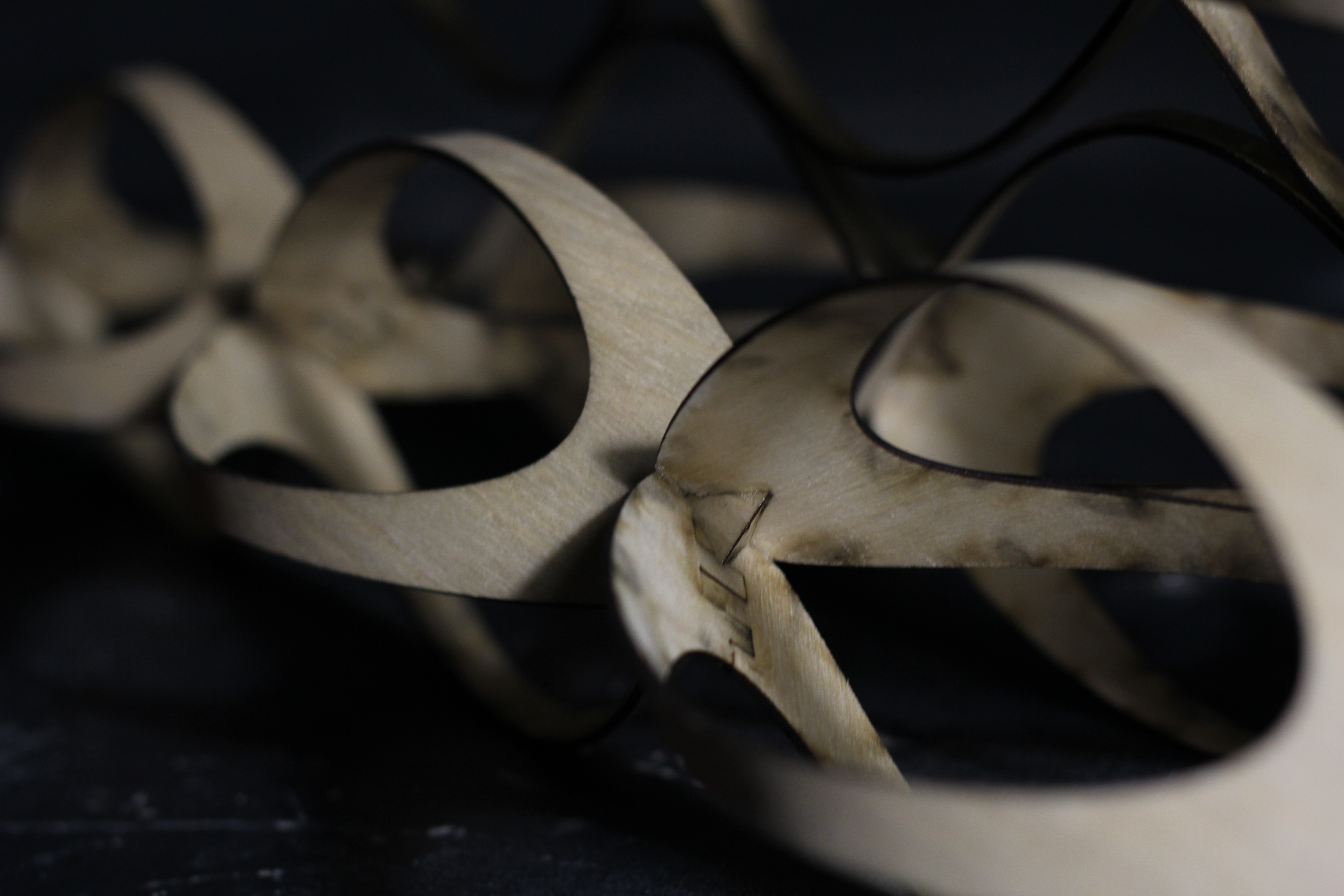

Our latest brief has challenged us to design a proposal for a specific event in which a common experience of joy and celebration is to be shared. My proposal is for a dedicated tennis stadium and training facility, which aims to increase public participation and create a fixed location in England for the ATP World Tour Finals. (To view the final proposal please follow this LINK) I am proposing to create a space frame from my component and as such have revised it from my Burning Man proposal. Below are a few images of the revised component and its possible tessellations.Revised ComponentAbove: ‘Egg’ shaped component made from a single sheet of plywood.

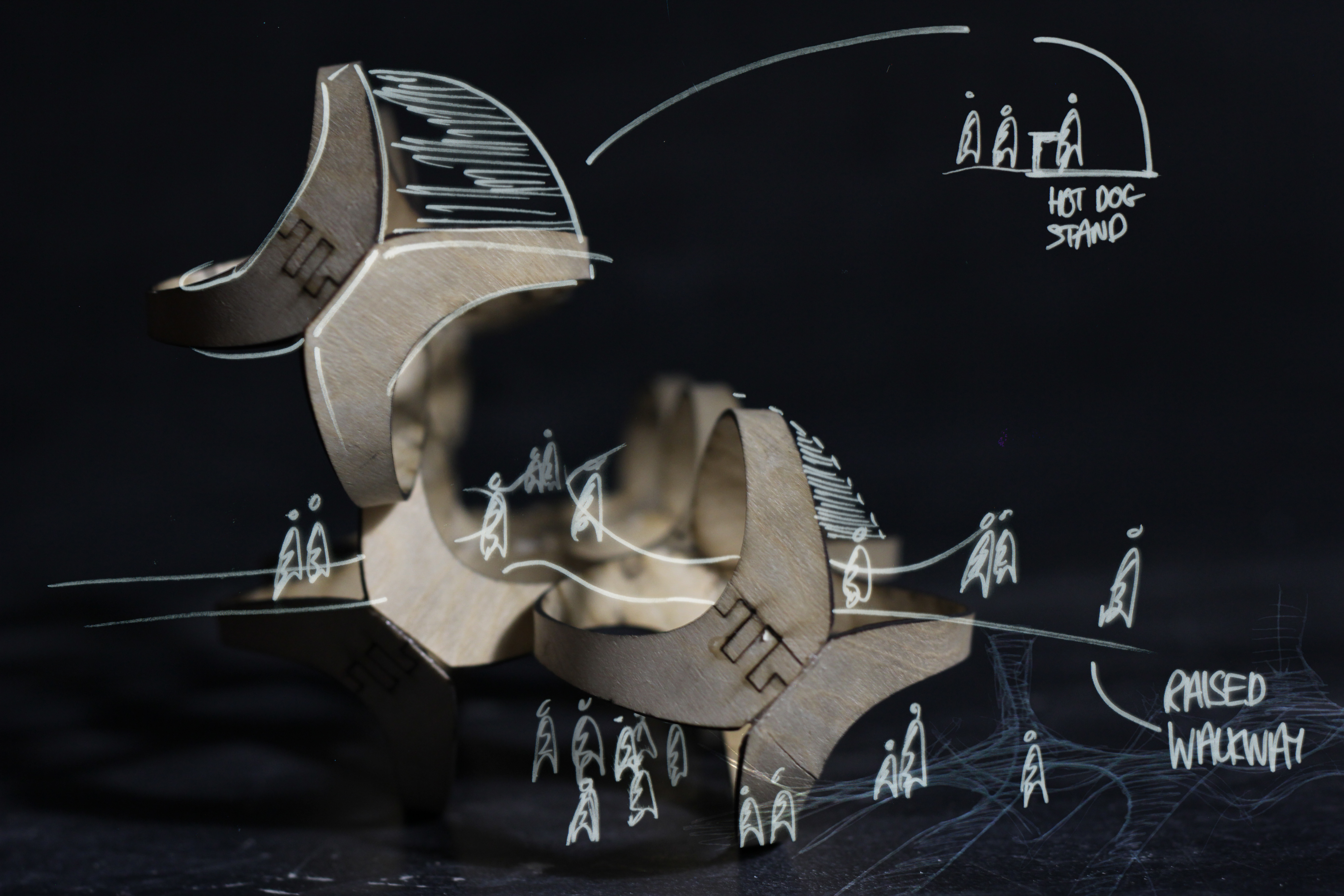

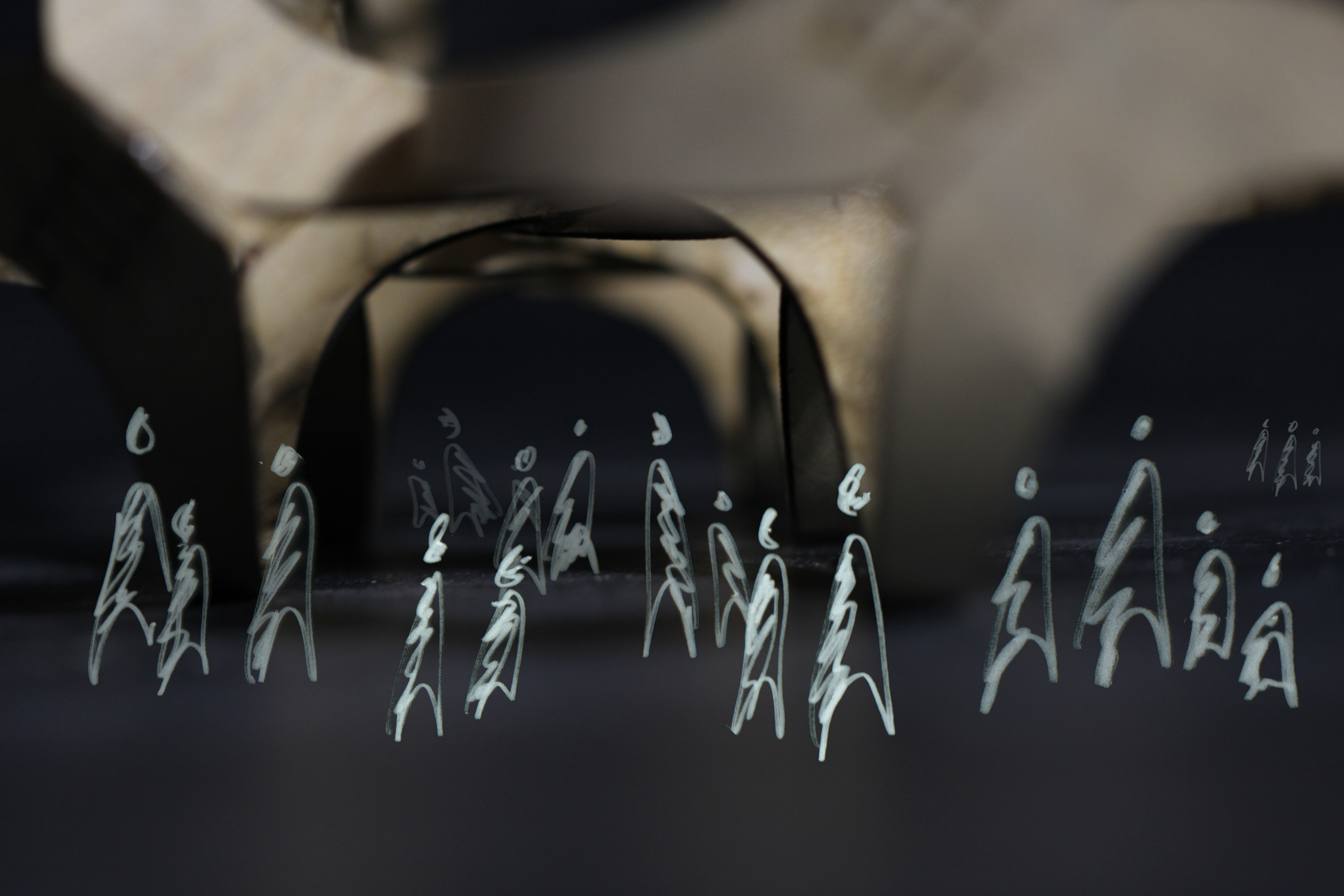

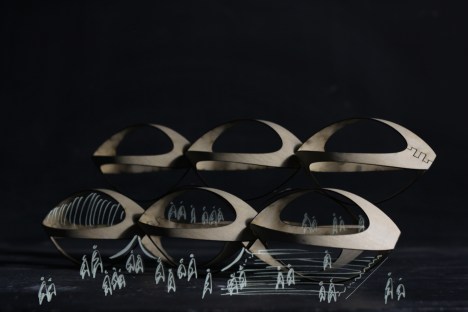

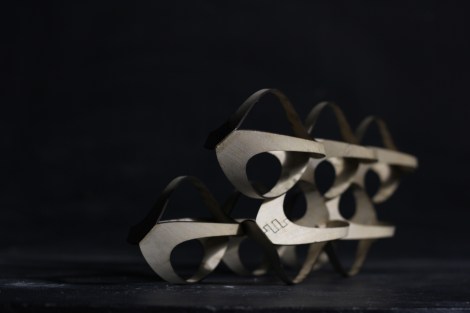

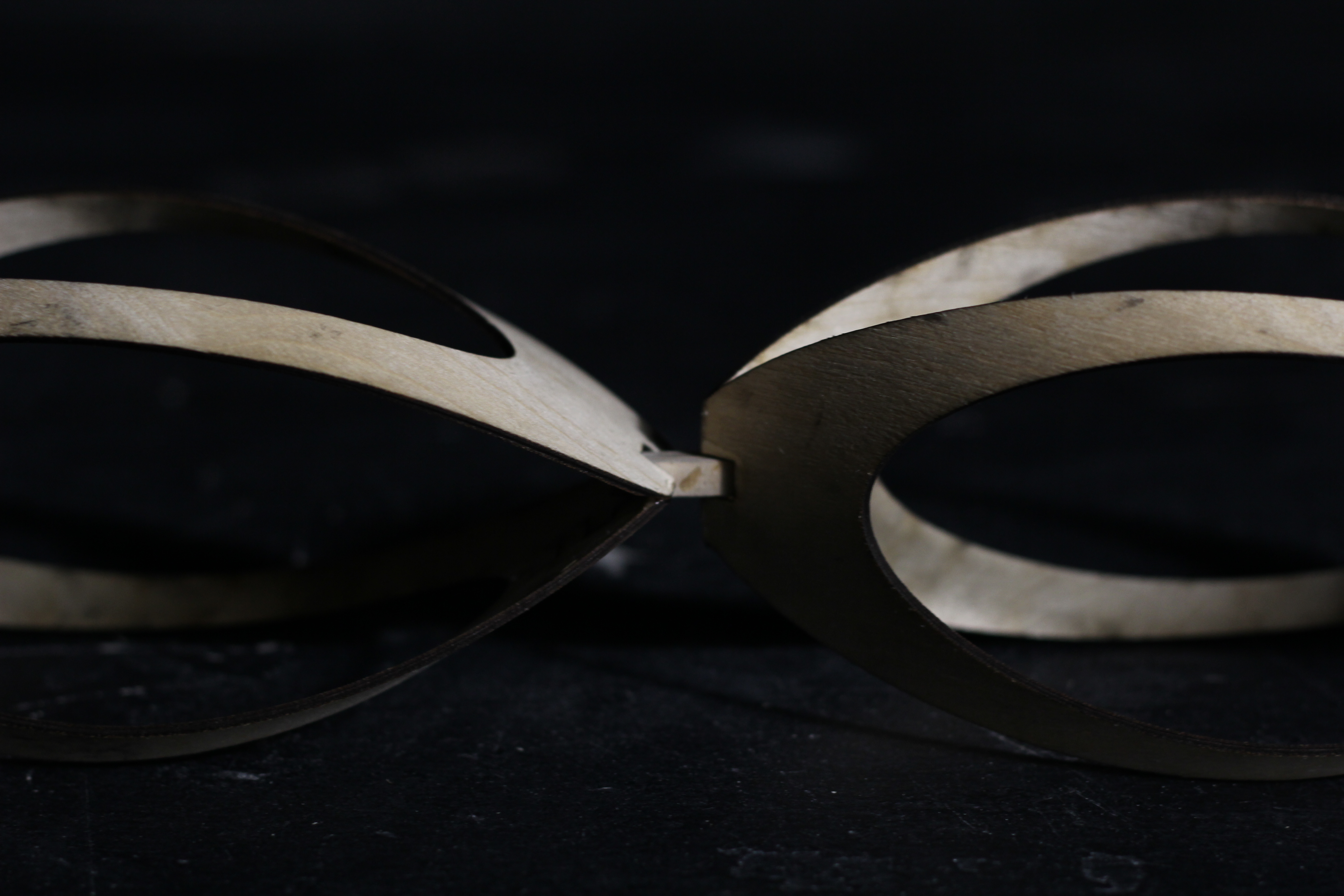

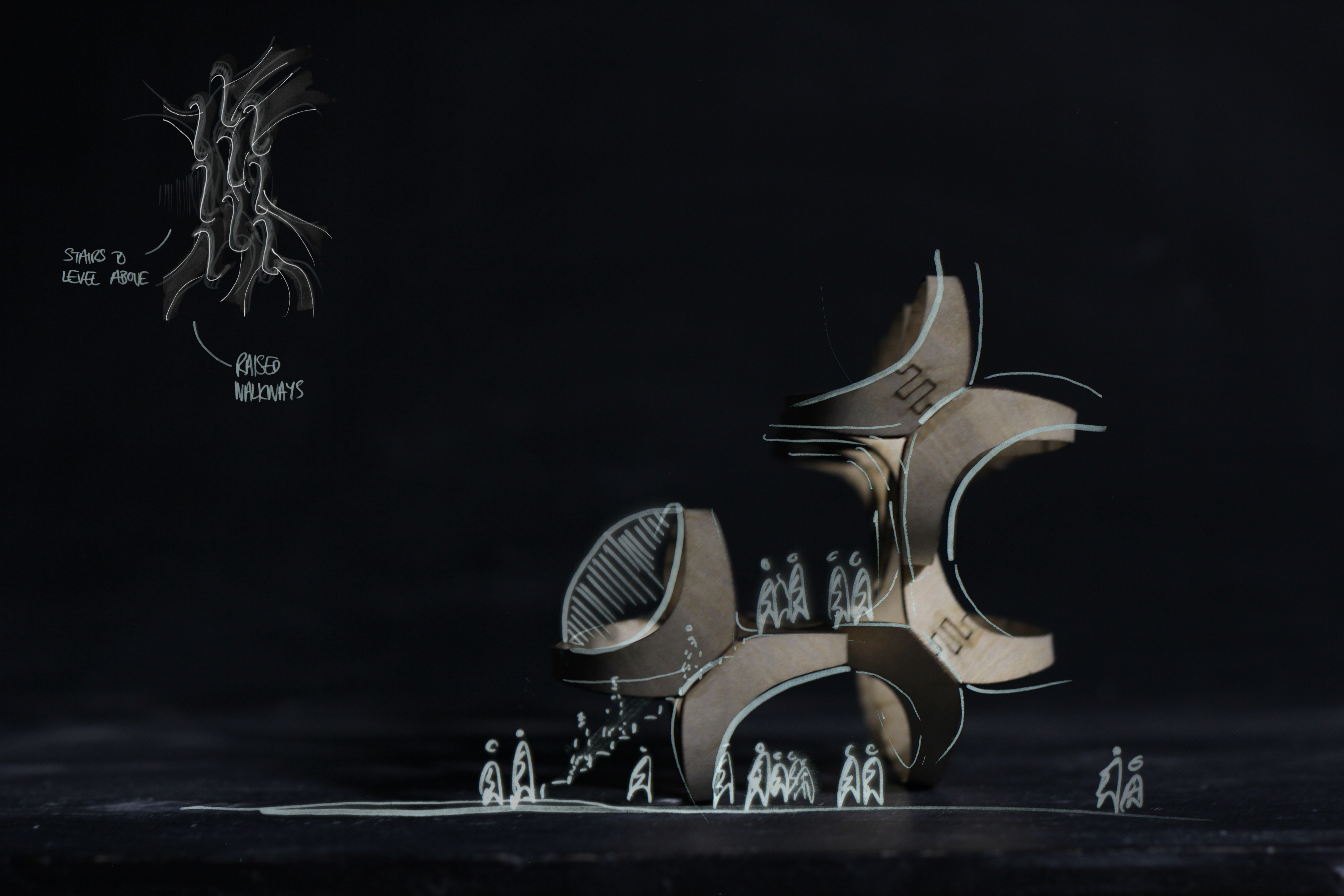

side elevation sketch 2side elevation sketchstairs and toilets sketchgangwayIMG_3605IMG_3611IMG_3584IMG_3587IMG_3624
